0.8m/S Bucket Elevator Sidewall Belt Conveyor For Cement Plant

Bucket Elevator Sidewall Conveyor Belt Machine For Cement Plant

Working Principles

Sidewall belt conveyor (also called large dip corrugated belt conveyor) with a large inclination (90 degrees vertical) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining,large dump trucks and other parties.

Application Scope
Large Angle Sidewall Belt Conveyor is one of the most commonly used mining equipment, which is widely used in mineral processing, construction materials, silicate and chemical industries. In the production of small scale, medium scale or large scale mineral processing Plants, it is generally used as the transportation machine for metal ores of gold, silver, copper, lead, zinc, nickel, manganese, iron, molybdenum , chromium, tin and others, as well as stone, rock, granite, limestone, quartz, graphite, feldspar, coal, etc.

Advantages

1. Allowed inclined conveying, Max angle is up to 90 degree.
2. Easy cleaning.
3. Adjust speed and adjust height according to your need.
4. The machine be designed fixed belt conveyor and mobile belt conveyor according to customer's need,
5. Conveying, loading and unloading equipment with high efficiency and good flexibility
6. Smooth transportation, There is no opposite movement between the goods and the transport belt, to avoid damage on the material to be transported.
7. Less noise, suitable for the work environment requires relatively quiet occasion.
8. If there is not external electric source, we can provide diesel engine, electric generato

Technical parameters for reference

Operation regulation and maintenance

• Belt conveyor should be operated in according to design requirement.

• Belt conveyors are not allowed to overload run.

• Check wear condition of the belt, the damaged should be repaired.

• Operators should circuit to inspect to close observe belt conveyor running. Especially,temperature rise and noise of main motor and the brake working whether they are normal; contact state of the brake and oil level, noise of gear unit and run off of belt should be noticed;temperature rise and noise of all bearings and state of all transition loads point should be noticed;

  notice to see whether the hopper are blocked, working state of pulley, idler, belt cleaner, take-ups and control equipment.

• Operators should make good record if any abnormal. The belt conveyor should be stoppe on emergency.

• Periodic overall: Minor overall should be once every monthes besides ordinary maintenance Overhaul should be once half past year or once every year.

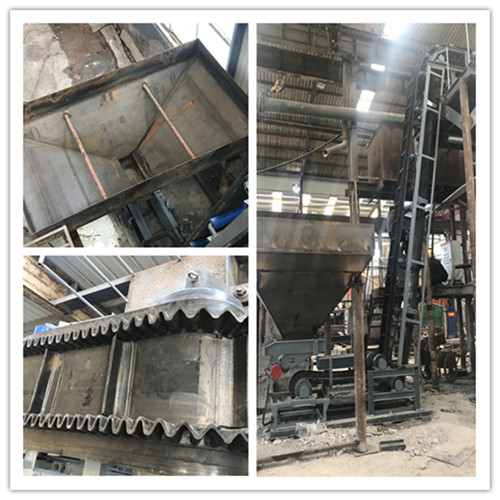

Cement Plant Sidewall Belt Conveyor
