Lifting Height 15m Conveying Bulk Material Large Angle Belt Conveyor

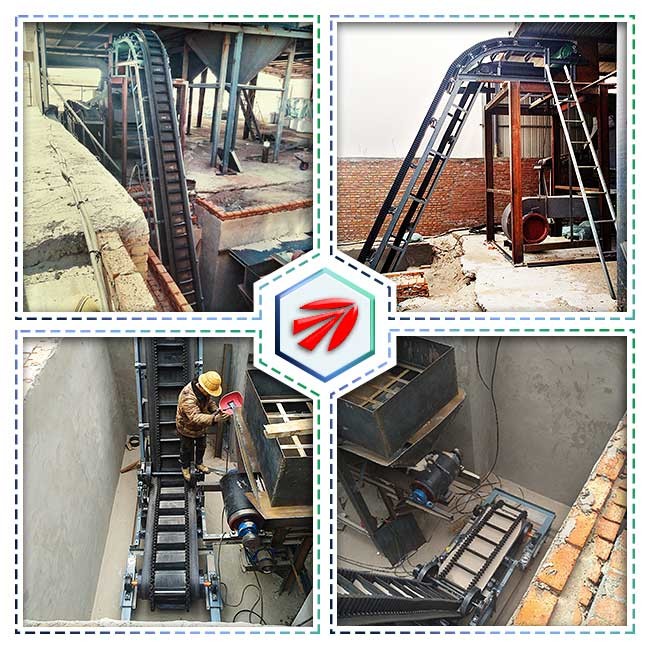

The Large Angle Belt Conveyor , also called sidewall belt conveyor, high-inclined conveyor, is a new model of continuous conveying equipment developed based on the general belt conveyor to suit the large-angle transportation.The Large Angle Belt Conveyor adopts a corrugated sidewall belt, and a corrugated vertical skirt is added on both sides of the flat belt. A horizontal partition with a certain strength and elasticity is added to the middle of the skirt to form a box-shaped bucket. The material can also be conveyed continuously in the hopper.
Large Angle Belt Conveyor is one of the most commonly used mining equipment, which is widely used in mining processing, construction materials, silicate and chemical industries. In the production of small scale, medium scale or large scale mineral processing Plants, it is generally used as the transportation machine for metal ores of gold, silver, copper, lead, zinc, nickel, manganese, iron, molybdenum , chromium, tin and others, as well as stone, rock, granite, limestone, quartz, graphite, feldspar, coal, etc.
Advantages
Smooth transportation, There is no opposite movement between the goods and the transport belt, to avoid damage on the material to be transported;Conveying, loading and unloading equipment with high efficiency and good flexibility;Allowed inclined conveying, Max angle is up to 90 degree; The machine be designed fixed belt conveyor and mobile belt conveyor according to customer's need;
Less noise, suitable for the work environment requires relatively quiet occasion;If there is not external electric source, we can provide diesel engine, electric generato
Technical parameters for reference
| Belt width (mm) | Cleat height (mm) | Handling capacity (m3/h) | Belt speed (m/s) | Inclination arrange (°) |
| 500 | 80 | 11-84 | 0.8-2.5 | 30-90 |
| 100 |
| 120 |
| 650 | 100 | 23-180 |
| 120 |
| 160 |
| 800 | 120 | 36-280 |
| 160 |
| 200 |
| 1000 | 160 | 45-500 |
| 200 |
| 240 |
| 1200 | 200 | 57-800 |
| 240 |
| 300 |
Operation regulation and maintenance
-
Operators should make good record if any abnormal. The belt conveyor should be stoppe on emergency.
-
Periodic overall: Minor overall should be once every monthes besides ordinary maintenance Overhaul should be once half past year or once every year.
-
Operators should circuit to inspect to close observe belt conveyor running. Especially,temperature rise and noise of main motor and the brake working whether they are normal; contact state of the brake and oil level, noise of gear unit and run off of belt should be noticed;temperature rise and noise of all bearings and state of all transition loads point should be noticed;
notice to see whether the hopper are blocked, working state of pulley, idler, belt cleaner, take-ups and control equipment.
- Inclined Sidewall Belt Conveyor should be operated in according to design requirement.
-
Inclined Sidewall Belt Conveyors are not allowed to overload run.
-
Check wear condition of the belt, the damaged should be repaired.
