Powder Particle Product Screw Auger Conveyor 250mm Diameter

Name: Powder Particle Product Screw Auger Conveyor 250mm Diameter
Brand: JINRUI
Price: 680 USD

Buy cheap Powder Particle Product Screw Auger Conveyor 250mm Diameter product

Brand Name : JINRUI

Model Number : LSY

Certification : ISO/CE

Place of Origin : HENAN,CHINA

MOQ : 1 set

Price : USD 680-USD 9800/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5SET PER 10 DAYS

Delivery Time : 10-12 WORK DAYS

Packaging Details : seaworthy wooden box packing or packed by steel structure

Material : Q235b

Application : Powder Particle Product

Warranty : 13 month

Voltage : 380/410/460/480v

Incline angle : Less than 60 degree

Porduct name : LSY 250mm Screw Augers Conveyor

Contact Now

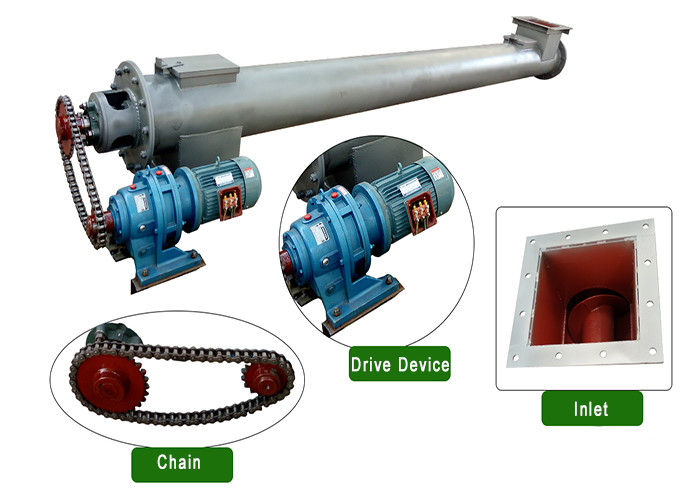

Powder Particle Product LSY 250mm Screw Augers Conveyor

A screw conveyor is a machine that uses a motor to drive a screw to rotate and push materials to achieve the purpose of conveying. It can be conveyed horizontally, obliquely or vertically, and has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, and convenient closed transportation. In terms of conveying form, screw conveyors are divided into two types: shafted screw conveyors and shaftless screw conveyors, and are divided into U-shaped screw conveyors and tubular screw conveyors in appearance.

Powder Particle Product Screw Auger Conveyor 250mm Diameter

Technical data of Screw Augers Conveyor

Model number			LSY160	LSY200	LSY250	LSY300	LSY400
Screw diameter(mm)			163	187	238	290	365
Rotating speed(r/min)			300	260	200	175/300	175
Outer diameter(mm)			194	219	273	325	402
Max length(m)			12	13	16	18	18
Incline degree(α°)			0°~60°	0°~60°	0°~60°	0°~55°	0°~55°
Conveying capacity(t/h)			30-20	50-32	70-53	82-60/120-85	140-110
Motor	Model	L≤-7	Y132S-4	Y132M-4	Y160L-6	Y180M-4	Y180M-4
	Power(kw)	L≤-7	5.5	7.5	11	18.5	18.5
	Model	L>7	Y132M-4	Y160M-4	Y180L-6	Y180L-4	Y180L-4
	Power(kw)	L>7	7.5	11	15	22	22

Features of Screw Augers Conveyor
1) The structure is relatively simple and the cost is low.
2) Reliable work, easy maintenance and management.
3) Compact size, small section size and small footprint.
4) can achieve sealed transportation

Selection Conditions of Screw Augers Conveyor

♦Material to be processed: _____

♦Handling capacity --------------

material capacity feeding from the inlet): _____t/h

♦Bulk Density: _____t/m3

♦Conveying distance --------------------------

♦Material size:____mm

♦Material temperature: _______ ℃

♦Water content:____%

♦Material is corrosive or not: ____ (Ps. Yes or No)

How to Select Correct Model Screw Augers Conveyor :
1. What's the accepted payment term?
T/T L/C Western union,cash and so on.
2. Are you a factory or a trading company
We are a factory,and you are warmlyh welcomed to pay an on-site visit!
3. Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an ideal solution
4. How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
5. Are you engineers available for overseas installation and training matters?
Yes,and all the relative costs should be covered by you

How to packing and delivery machine !!!
Usually packed with seaworthy wooden box packing and we can accepted customer sepical required .
