Industrial Powder Q235B Material 50m3/h Sand Screw Conveyor
Summray of Screw Conveyor
Screw conveyor is one of machine which uses motor to drive screw rotation and push materials to achieve the purpose of conveying. Screw conveyor can be transported horizontally, inclined or vertically. Screw Conveyor has advantages : simple structure, good sealing, small cross-sectional area, easy maintenance,convenient operation and closed transportation. Screw conveyor can be divided into shaft screw conveyor and shaftless screw conveyor in conveying form, and U screw conveyor and pipe screw conveyor in appearance. The shaft screw conveyor is suitable for small particle materials and cohesionless dry powder materials (such as cement, fly ash, lime, grain, etc.), while the shaftless screw conveyor is suitable for viscous and easy winding materials. (for example:biomass, sludge, garbage, etc.) the working principle of the screw conveyor is that the rotating spiral blade moves the material and carries out the screw conveyor conveying.
Characteristics of Screw Conveyor
1, simple structure;
2,convenient maintenance;
3,small size of the cross section;
4,can enter and leave materials at any position in the length direction;
5, can use the cover of the tight closed housing to achieve a better sealing effect;
Therefore, screw conveyor is widely used in various industrial sectors to transport a variety of powdered, granular and small materials, such as cement, coal ash, coal, sand, cereals and so on; it is not easy to transport viscous caking materials which are easy to deteriorate.
Technical parameter of Screw Conveyor
| Model | Diameter mm | Pitch mm | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) |
| φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 |
| LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 |
| LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105.8 | 77.6 | 35.3 | 40 | 84.6 | 62.0 | 28.2 |
| LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63.0 | 40 | 151.1 | 110.8 | 50.4 | 32 | 120.9 | 88.6 | 40.3 |
1.Q:How can i choose a suitable model for ourself?
A:pls supply the below information.
1.Transport material and its particle size
2.horizontal transport and inclined transport?If inclined transport,pls let me know the inclined angle.
3.transport distance
4.capacity per hour
2.Q:How is the MOQ.
A:one set can be accepted.
Product Tags:
|
|

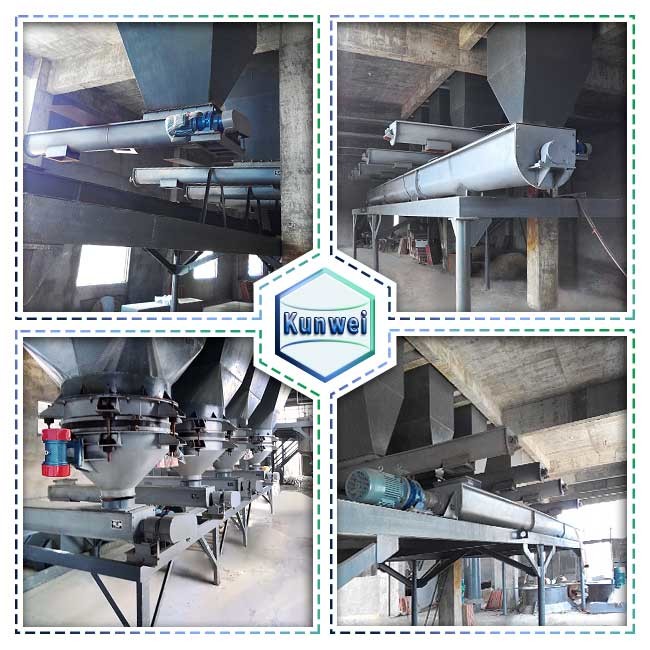

Industrial Powder Q235B Material Sand Screw Conveyor 50m3/h Images
|
